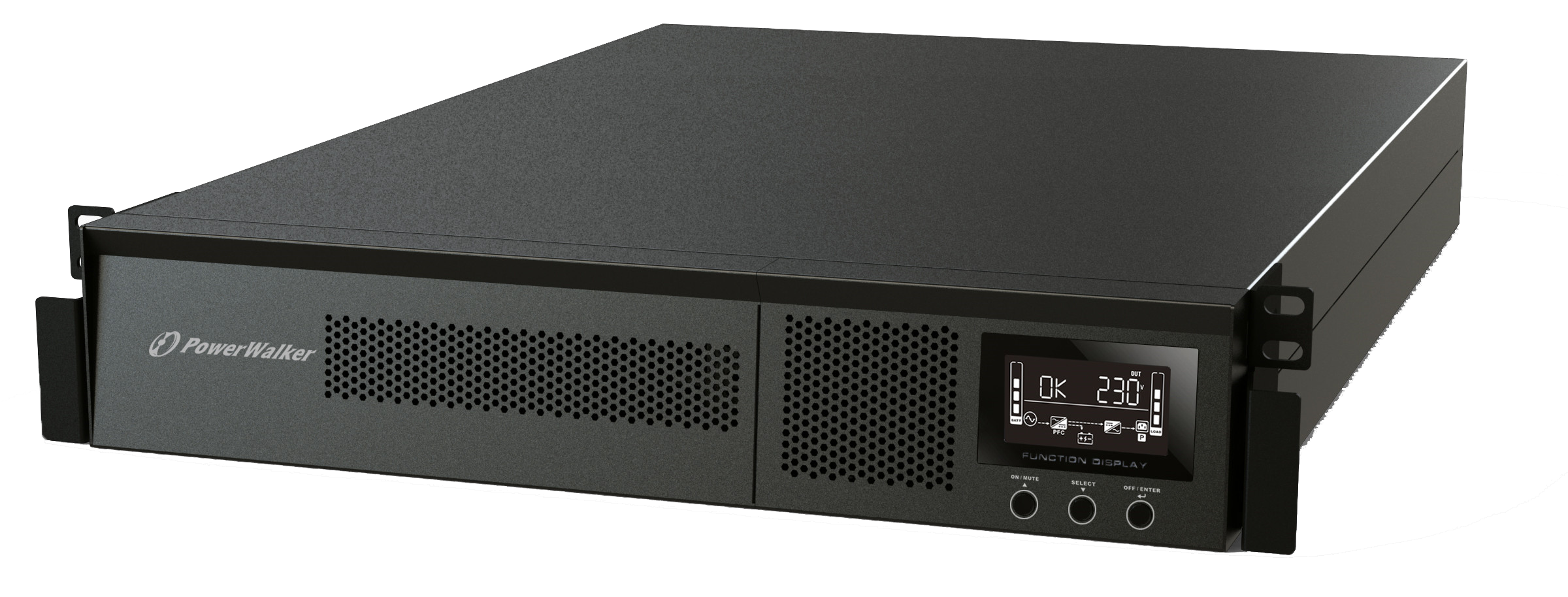

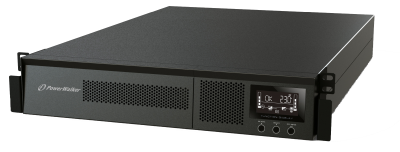

PowerWalker VFI 2000 RMG PF1, 2000VA/2 kW, 8 utgångar, USB/RS232, rackmonterbar
PowerWalker 10122114
The PowerWalker VFI 1000-3000 RMG PF1 is a professional series for commercial applications featuring unity Power Factor (PF=1.0) and very strong charger with adjustable current. The wide input voltage and frequency ranges allow operation in unstable networks and provide generator support.

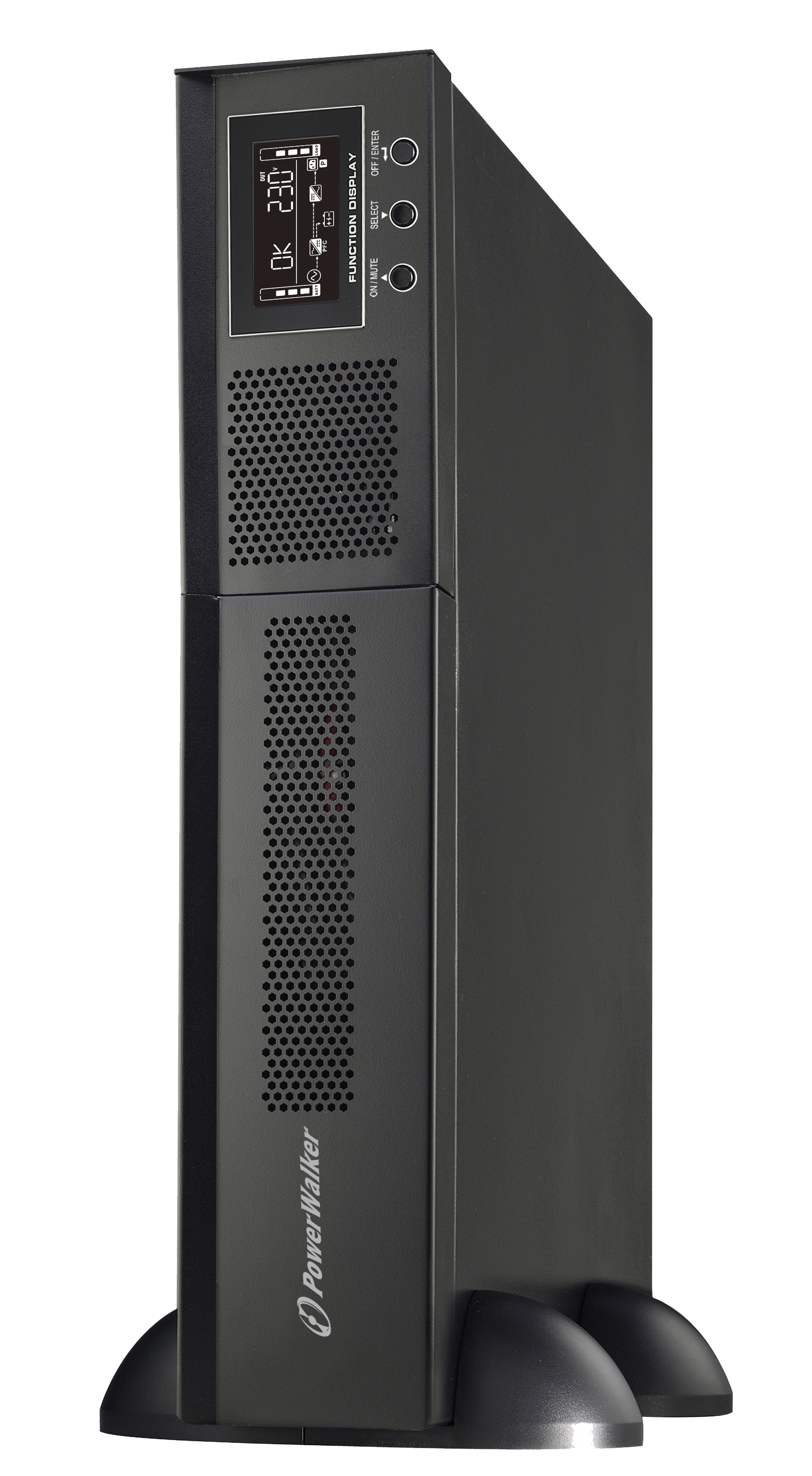

Multiple accessories, including battery packs and communication cards, enhance the functionality of the UPS and allow a greater backup time. The system can be monitored locally via an LCD panel or remotely via the PowerWalker ViewPower software. With its slim design it only requires 2U valuable space of your rack system. The UPS can be installed in 19” rack systems or used as tower.
• Online technology with Power Factor 1.0
• Strong charger with adjustable current
• Wide input voltage range for all environments and support for AC generator
• Support for laser printers and ultrasound systems (allows connecting loads with half-wave imbalance)

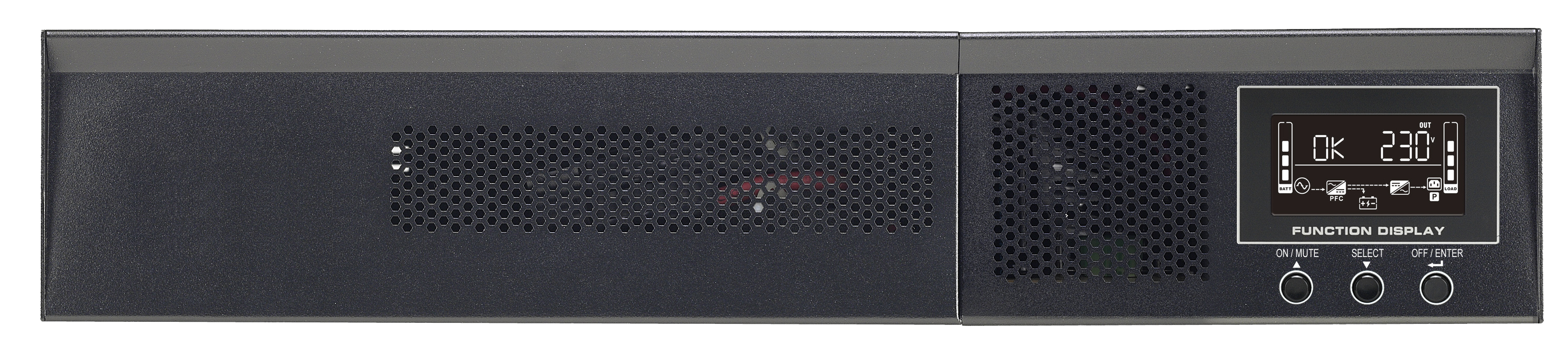

• New LCD design - with estimated backup time and icon diagram
Multiple accessories, including battery packs and communication cards, enhance the functionality of the UPS and allow a greater backup time. The system can be monitored locally via an LCD panel or remotely via the PowerWalker ViewPower software. With its slim design it only requires 2U valuable space of your rack system. The UPS can be installed in 19” rack systems or used as tower.
• Online technology with Power Factor 1.0
• Strong charger with adjustable current
• Wide input voltage range for all environments and support for AC generator
• Support for laser printers and ultrasound systems (allows connecting loads with half-wave imbalance)
• New LCD design - with estimated backup time and icon diagram
2 000 VA
Art.nr: 16969
Beställningsvara (2-3 dagar)
{$antal} {$enhet} i fjärrlager
8 990 kr
4,50 kr / VA
Produktspecifikation
Egenskaper
| Uteffekt kapacitet (VA) | 2000 VA |
| Uteffekt | 2000 W |
| UPS-topologi | Dubbelkonvertering (Online) |
| Ljudnivå Lc IEC | 50 dB |
| Inmatning spänning (max) | 300 V |
| Inmatning spänning (min) | 110 V |
| Överspänningsskydd funktioner | Fax, Modem, Nätverk |
| Överspänningsskydd | Ja |
| Utgång, driftspänning (max) | 240 V |
| Utgång, driftspänning (min) | 200 V |
Design
| Formfaktor | Rack / Torn |
| Skärmtyp | LCD |

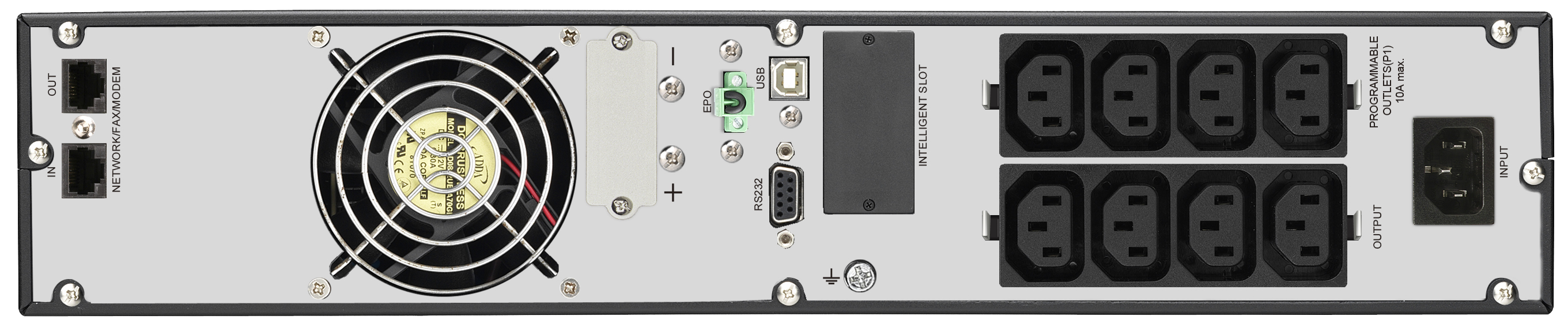

Anslutningar
| AC-utgångar | IEC / C13 |
| Seriellt gränssnitt | Ja |
| Seriellt gränssnitt | RS-232 |
| Uttag | C14 coupler |
| Antalet Ethernet (RJ-45) anslutningar | 1 |
| Modem (RJ-11) Port | 1 |
| USB-port | Ja |
| Antal USB 2.0 anslutningar | 1 |
| Antal typ F-utgångar | 8 |
| RS-232 port | 1 |
Batteri
| Normal drifttid vid full belastning | 4,4 min |
| Normal drifttid vid halv belastning | 12,8 min |
| Batterikapacitet | 7 Ah |
| Laddningstid | 3 tim |
| Antal batterier | 6 |
Miljökrav
| Temperatur vid drift | 0 - 40 ° C |
Vikt & dimension
| Bredd | 190 mm |
| Djup | 630 mm |
| Höjd | 318 mm |
| Vikt | 23,3 kg |
Fabrikat
| Tillverkare | PowerWalker |
| SKU | 10122114 |
| Produktlänk | https://powerwalker.com/?item=10122114 |
Egenskaper
| Uteffekt kapacitet (VA) | 2000 VA |
| Uteffekt | 2000 W |
| UPS-topologi | Dubbelkonvertering (Online) |
| Ljudnivå Lc IEC | 50 dB |
| Inmatning spänning (max) | 300 V |
| Inmatning spänning (min) | 110 V |
| Överspänningsskydd funktioner | Fax, Modem, Nätverk |
| Överspänningsskydd | Ja |
| Utgång, driftspänning (max) | 240 V |
| Utgång, driftspänning (min) | 200 V |
Design
| Formfaktor | Rack / Torn |
| Skärmtyp | LCD |
Anslutningar
| AC-utgångar | IEC / C13 |
| Seriellt gränssnitt | Ja |
| Seriellt gränssnitt | RS-232 |
| Uttag | C14 coupler |
| Antalet Ethernet (RJ-45) anslutningar | 1 |
| Modem (RJ-11) Port | 1 |
| USB-port | Ja |
| Antal USB 2.0 anslutningar | 1 |
| Antal typ F-utgångar | 8 |
| RS-232 port | 1 |
Batteri
| Normal drifttid vid full belastning | 4,4 min |
| Normal drifttid vid halv belastning | 12,8 min |
| Batterikapacitet | 7 Ah |
| Laddningstid | 3 tim |
| Antal batterier | 6 |
Miljökrav
| Temperatur vid drift | 0 - 40 ° C |
Vikt & dimension
| Bredd | 190 mm |
| Djup | 630 mm |
| Höjd | 318 mm |
| Vikt | 23,3 kg |
Fabrikat
| Tillverkare | PowerWalker |
| SKU | 10122114 |
| Produktlänk | https://powerwalker.com/?item=10122114 |
