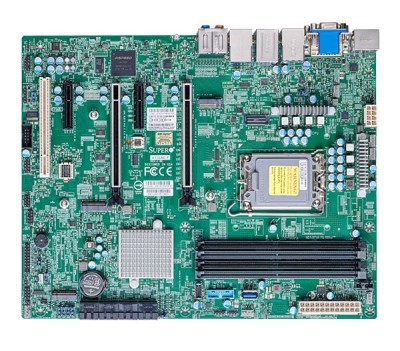

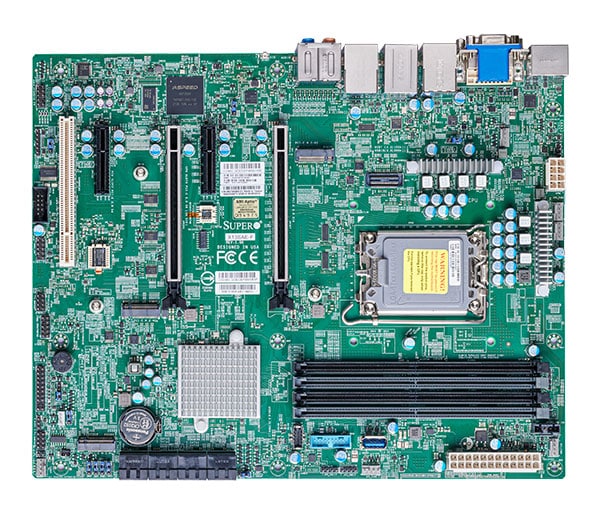

Supermicro MBD-X13SAE-F-O, Intel LGA1700, W680, ATX, 3xPCI Express, 4xDDR5, 3xM.2 + SATA3 RAID, VGA/DVI/HDMI/DP, USB-C, GigaLAN+2.5GbE LAN
Supermicro MBD-X13SAE-F-O
Key Features
• 12th/13th Generation Intel® Core™ i3/i5/i7/i9 Processors, Single Socket LGA-1700 supported, Up to 150W TDP
• Intel® W680
• 128GB Unbuffered ECC/non-ECC UDIMM, DDR5-4400MT/s, 4 DIMM Slots
• 2 PCIe 5.0 x16 slots (16/NA or 8/8), 2 PCIe 3.0 x4 1 5V PCI 32bit
• M.2 Interface: 3 PCIe 4.0 x4 (RAID 0, 1, 5) M.2 Form Factor: 2280 M.2 Key: M-Key
• Single LAN with Intel® Ethernet i225V Single LAN with Intel® PHY I219LM LAN controller for AMT/vPro
• 8 SATA3 (6 Gb, RAID 0, 1, 5, 10)
• 1 DP 1.4a, 1 HDMI 2.0b, 1 VGA, 1 DVI-D, 1 Dedicated IPMI LAN Port
• IPMI Supported
• 12th/13th Generation Intel® Core™ i3/i5/i7/i9 Processors, Single Socket LGA-1700 supported, Up to 150W TDP
• Intel® W680
• 128GB Unbuffered ECC/non-ECC UDIMM, DDR5-4400MT/s, 4 DIMM Slots
• 2 PCIe 5.0 x16 slots (16/NA or 8/8), 2 PCIe 3.0 x4 1 5V PCI 32bit
• M.2 Interface: 3 PCIe 4.0 x4 (RAID 0, 1, 5) M.2 Form Factor: 2280 M.2 Key: M-Key
• Single LAN with Intel® Ethernet i225V Single LAN with Intel® PHY I219LM LAN controller for AMT/vPro
• 8 SATA3 (6 Gb, RAID 0, 1, 5, 10)
• 1 DP 1.4a, 1 HDMI 2.0b, 1 VGA, 1 DVI-D, 1 Dedicated IPMI LAN Port
• IPMI Supported
Art.nr: 21325
Produkten har utgått
Produktspecifikation
Anslutningsmöjligheter
| Antal USB 3.2 Gen 2 (3.1 Gen 2) typ A-portar | 3 |
| Antal DVI-D | 1 |
| Antal HDMI | 1 |
| HDMI-version | 2.0b |
| Antal Displayportar | 1 |
| DisplayPort-version | 1.4a |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar | 3 |
| Antal Ethernet (RJ-45) | 3 |
| Antal VGA (D-Sub) | 1 |
| Antal USB 2.0 anslutningar | 4 |
Egenskaper
| Moderkort formfaktor | ATX |
| Moderkortets chipset | Intel W680 |
| Ljudchipp | Realtek ALC888S |
BIOS
| BIOS minnesstorlek | 32 mbit |
| BIOS-typ | AMI |
Internal I/O
| TPM-anslutning | Ja |
| Serieport headers | 1 |
Minne
| Antal minnesplatser | 4 |
| Maximalt internminne | 192 GB |
| Minnestyper som stöds | DDR5-SDRAM |
Nätverk
| Typ av ethernet-gränssnitt | 2.5 Gigabit Ethernet |
| LAN-styrenhet | Intel I219-LM |
Processor
| Processorsockel | LGA 1700 |
| Processortillverkare | Intel |
Vikt & dimension
| Bredd | 304,8 mm |
| Djup | 243,8 mm |
Miljökrav
| Temperatur vid drift | 0 - 50 ° C |
| Temperaturintervall (förvaring) | -20 - 60 ° C |
Fabrikat
| Tillverkare | Supermicro |
| SKU | MBD-X13SAE-F-O |
| Produktlänk | https://www.supermicro.com/en/products/motherboard/x13sae-f |
Anslutningsmöjligheter
| Antal USB 3.2 Gen 2 (3.1 Gen 2) typ A-portar | 3 |
| Antal DVI-D | 1 |
| Antal HDMI | 1 |
| HDMI-version | 2.0b |
| Antal Displayportar | 1 |
| DisplayPort-version | 1.4a |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar | 3 |
| Antal Ethernet (RJ-45) | 3 |
| Antal VGA (D-Sub) | 1 |
| Antal USB 2.0 anslutningar | 4 |
Egenskaper
| Moderkort formfaktor | ATX |
| Moderkortets chipset | Intel W680 |
| Ljudchipp | Realtek ALC888S |
BIOS
| BIOS minnesstorlek | 32 mbit |
| BIOS-typ | AMI |
Internal I/O
| TPM-anslutning | Ja |
| Serieport headers | 1 |
Minne
| Antal minnesplatser | 4 |
| Maximalt internminne | 192 GB |
| Minnestyper som stöds | DDR5-SDRAM |
Nätverk
| Typ av ethernet-gränssnitt | 2.5 Gigabit Ethernet |
| LAN-styrenhet | Intel I219-LM |
Processor
| Processorsockel | LGA 1700 |
| Processortillverkare | Intel |
Vikt & dimension
| Bredd | 304,8 mm |
| Djup | 243,8 mm |
Miljökrav
| Temperatur vid drift | 0 - 50 ° C |
| Temperaturintervall (förvaring) | -20 - 60 ° C |
Fabrikat
| Tillverkare | Supermicro |
| SKU | MBD-X13SAE-F-O |
| Produktlänk | https://www.supermicro.com/en/products/motherboard/x13sae-f |
