Asus ProArt Z890-CREATOR WIFI, Intel LGA1851, 3xPCI Express, ATX, 4xDDR5, 5xM.2 + SATA3 RAID, HDMI/TB4/2xTB5, USB-C, 10GbE+2.5GbE LAN, WiFi 7, Bluetooth 5.4
ASUS 90MB1JD0-M0EAY0
ProArt logoZ890-Creator WiFi
The ProArt Z890-CREATOR WIFI empowers creators of all levels by maximizing the performance of the latest Intel® Core™ Ultra Processor (Series 2) processors with 16+1+2+2 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including dual Thunderbolt™ 5 ports, 10G and 2.5G Ethernet, and WiFi 7.

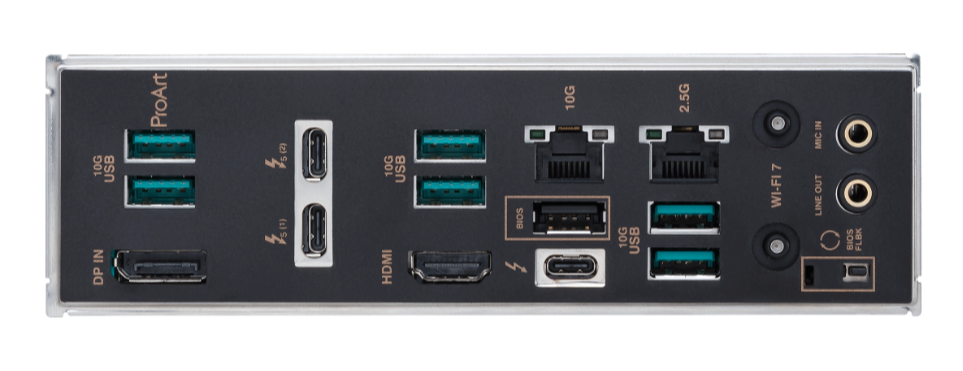

This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A subtly designed I/O cover provides a sleek and sophisticated look while concealing the premium connectors within.
The ProArt Z890-CREATOR WIFI empowers creators of all levels by maximizing the performance of the latest Intel® Core™ Ultra Processor (Series 2) processors with 16+1+2+2 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including dual Thunderbolt™ 5 ports, 10G and 2.5G Ethernet, and WiFi 7.
This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A subtly designed I/O cover provides a sleek and sophisticated look while concealing the premium connectors within.
Art.nr: 7139
Beställningsvara (3-4 dagar)
{$antal} {$enhet} i fjärrlager
6 190 kr
Produktspecifikation
Anslutningsmöjligheter
| Antal USB 3.2 Gen 2 (3.1 Gen 2) typ A-portar | 6 |
| HDMI-version | 2.1 |
| Antal Displayportar | 1 |
| DisplayPort-version | 2.1 |
| Hörlursutgångar | 1 |
| Antal USB 2.0 anslutningar | 1 |
| Antal HDMI-portar | 1 |
| Antal Thunderbolt-portar | 3 |
| Antal LAN (RJ-45) anslutningar | 2 |
| WiFi-AP antennuttag | 2 |
Egenskaper
| Ljudutgångskanaler | 7.1 kanaler |
| Moderkort formfaktor | ATX |
| Moderkortets chipset | Intel Z890 |
| Ljudchipp | Realtek ALC1220P |
| Produktens färg | Svart |
Expansionsplatser
| PCI Express x16 (Gen 5.x) platser | 2 |
| PCI Express x16 (Gen 4.x) platser | 1 |
| Antal M.2 (M)-platser | 5 |
| 1st M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
Grafiken
| Stöd för parallellprocessteknik | Stöds inte |
Internal I/O
| Antal anslutningar för fläktar | 5 |
| USB 2.0 anslutning | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1)-anslutningar | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2)-anslutningar | 1 |
| Antal SATA III kontakter | 4 |
| Antalet COM-anslutningar | 1 |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 2 |
| Number of RGB LED pin headers | 3 |
| TPM-anslutning | Ja |
Minne
| Antal minnesplatser | 4 |
| Maximalt internminne | 192 GB |
| Minnestyper som stöds | DDR5-SDRAM |
| Minneskanaler | Dubbla kanaler |
Nätverk
| Wi-Fi-standard | Wi-Fi 7 (802.11be) |
| Typ av ethernet-gränssnitt | 2.5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Bluetooth | Ja |
| Wi-Fi | Ja |
| Bluetooth-version | 5.4 |
Processor
| Processorsockel | LGA 1851 (Socket V1) |
| Processortillverkare | Intel |
Lagringskontroll
| Lagringsenhetsgränssnitt som stöds | M.2, SATA III |
| Antal lagringsenheter som stöds | 9 |
| RAID-nivåer | 0, 1, 5, 10 |
| Antalet hårddiskar som stöds | 4 |
| RAID-stöd | Ja |
Vikt & dimension
| Bredd | 305 mm |
| Djup | 244 mm |
Anslutningsmöjligheter
| Antal USB 3.2 Gen 2 (3.1 Gen 2) typ A-portar | 6 |
| HDMI-version | 2.1 |
| Antal Displayportar | 1 |
| DisplayPort-version | 2.1 |
| Hörlursutgångar | 1 |
| Antal USB 2.0 anslutningar | 1 |
| Antal HDMI-portar | 1 |
| Antal Thunderbolt-portar | 3 |
| Antal LAN (RJ-45) anslutningar | 2 |
| WiFi-AP antennuttag | 2 |
Egenskaper
| Ljudutgångskanaler | 7.1 kanaler |
| Moderkort formfaktor | ATX |
| Moderkortets chipset | Intel Z890 |
| Ljudchipp | Realtek ALC1220P |
| Produktens färg | Svart |
Expansionsplatser
| PCI Express x16 (Gen 5.x) platser | 2 |
| PCI Express x16 (Gen 4.x) platser | 1 |
| Antal M.2 (M)-platser | 5 |
| 1st M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
Grafiken
| Stöd för parallellprocessteknik | Stöds inte |
Internal I/O
| Antal anslutningar för fläktar | 5 |
| USB 2.0 anslutning | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1)-anslutningar | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2)-anslutningar | 1 |
| Antal SATA III kontakter | 4 |
| Antalet COM-anslutningar | 1 |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 2 |
| Number of RGB LED pin headers | 3 |
| TPM-anslutning | Ja |
Minne
| Antal minnesplatser | 4 |
| Maximalt internminne | 192 GB |
| Minnestyper som stöds | DDR5-SDRAM |
| Minneskanaler | Dubbla kanaler |
Nätverk
| Wi-Fi-standard | Wi-Fi 7 (802.11be) |
| Typ av ethernet-gränssnitt | 2.5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Bluetooth | Ja |
| Wi-Fi | Ja |
| Bluetooth-version | 5.4 |
Processor
| Processorsockel | LGA 1851 (Socket V1) |
| Processortillverkare | Intel |
Lagringskontroll
| Lagringsenhetsgränssnitt som stöds | M.2, SATA III |
| Antal lagringsenheter som stöds | 9 |
| RAID-nivåer | 0, 1, 5, 10 |
| Antalet hårddiskar som stöds | 4 |
| RAID-stöd | Ja |
Vikt & dimension
| Bredd | 305 mm |
| Djup | 244 mm |
