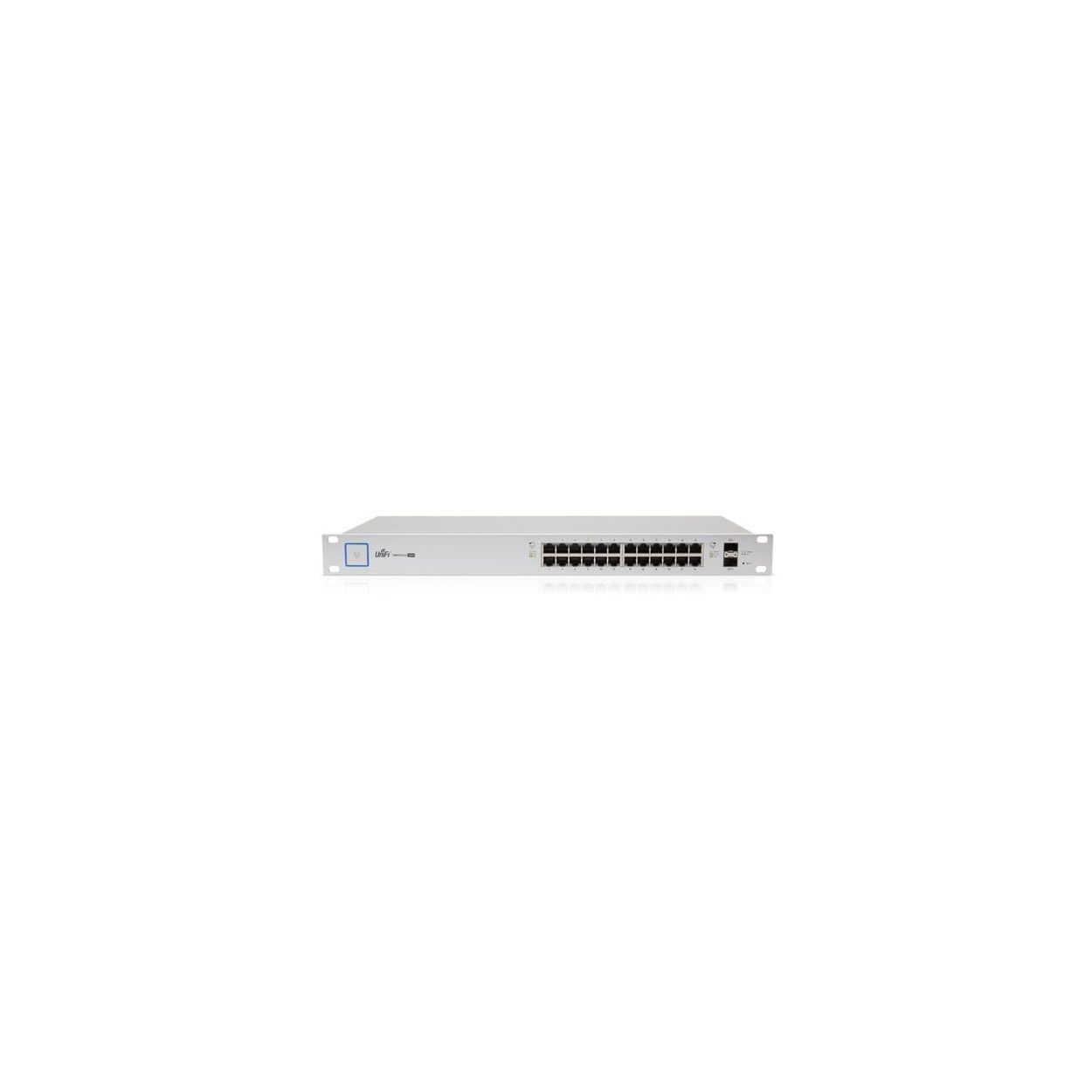

Ubiquiti Unifi Switch 24 portar Managed PoE+ Gigabit Switch med SFP
-
Powerful Enterprise Switch Models
The UniFi® Switch delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. Total non-blocking throughput: up to 26 Gbps for 24-port models and up to 70 Gbps for 48-port models.
Advanced Port Management
Each switch port offers custom settings: port name, PoE, network/VLAN configuration, and operation mode (switching, mirroring, or aggregate).
Optical Fiber Connectivity
Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.
Convenient PoE+ Support
The UniFi® Switch features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.
Seamless Integration
The UniFi® Switch integrates seamlessly into the UniFi Software-Defined Networking (SDN) platform to create a highly scalable, end-to-end system of network devices across multiple locations — all controlled from a single interface. -
Anslutningar
Antal grundläggande RJ-45 Ethernet-portar 24 Typ av grundläggande RJ-45 Ethernet-portar Gigabit Ethernet (10/100/1000) Antal SFP-modulplatser 2 Konsolport RJ-45 Vikt & dimensionBredd 485 mm Djup 285,6 mm Höjd 44,5 mm Vikt 3,7 kg StrömtillförselStrömförbrukning (max) 250 W AC-inspänning 100-240 Växelström Frekvens 50/60 MiljökravTemperatur vid drift -5 - 40 ° C Intervall för relativ operativ luftfuktighet 5 - 95% NätverkKommunikationsstandarder IEEE 802.3af,IEEE 802.3at 10G stöd Nej Flödeskontroll Ja Data transmissionSwitch kapacitet 52 Gbit/s Genomströmning 38,69 Mpps Management featuresSwitch typ Managed network switch Återställningsknapp Ja Förpackningens innehållKabel inkluderad AC DesignRackmontering Ja Produktens färg Silver Formfaktor 1U Indikationer Ja Indbyg / fritstående Fristående Certifiering CE, FCC, IC Power over Ethernet (PoE)Strömförsörjning via Ethernet (PoE) stöd Ja Total Power over Ethernet (PoE)-budget 34,2 W PrestandaLjudnivå Lc IEC 53 dB
